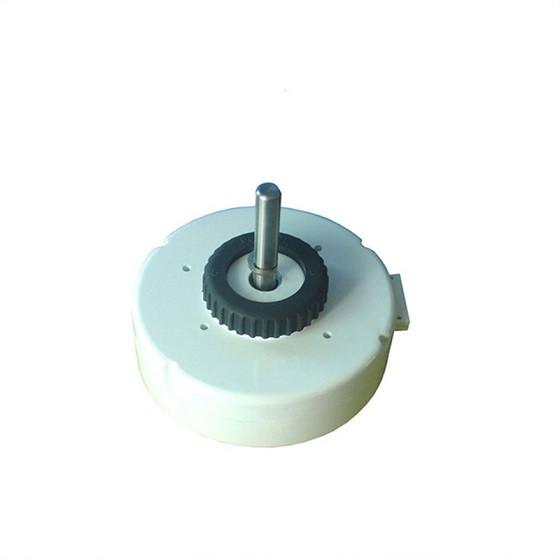

ZG-YYSS-01 Plastic Housing Motor

Availability:
Quantity:
Inquire Add to Basket

  • ZG-YYSS-01 Plastic Housing Motor

  • Ritscher

Product Description

Product characteristic

Type: Fan motor for indoor air conditioner
This motor has a contorl system with Hall Effect Aplication, according input volt singal, it can control motor speed. But must be supported by a PCB in your machine.
IF we doesn't have this system, we can only connect with the wires according the diagram on right. The motor also can work.
The installation of motor is firm and reliable, the fastener is tight, and the running is stable, without block and abnormal noise.
The matched high-efficiency vane with various sizes and lenghths are provided.

Electrical specification

Brand Name: OEM Model Number: ZG-YYSS-01 Type: Asynchronous Motor
Frequency: 50/60HZ Output Power: 12w Protect Feature: Waterproof
Phase: Single-phase AC Voltage: 220V-240V Place of Origin: China (Mainland)
Efficiency: IE 2 rust prevention: thermal protector color: cream
voltage: 220-240V phase: single-phase rated current: 0.7A
speed: 1500rpm insulation grade: B type: AC motor
output power: 100W input power: 155W


Packaging & Delivery
Specifications
Air conditioner motor
1.Voltage/Current:220-240/0.13A-0.28A
2.Frequency:50/60Hz
3.Output power: 6W ~25W
Speed:800R/M~1300R/M

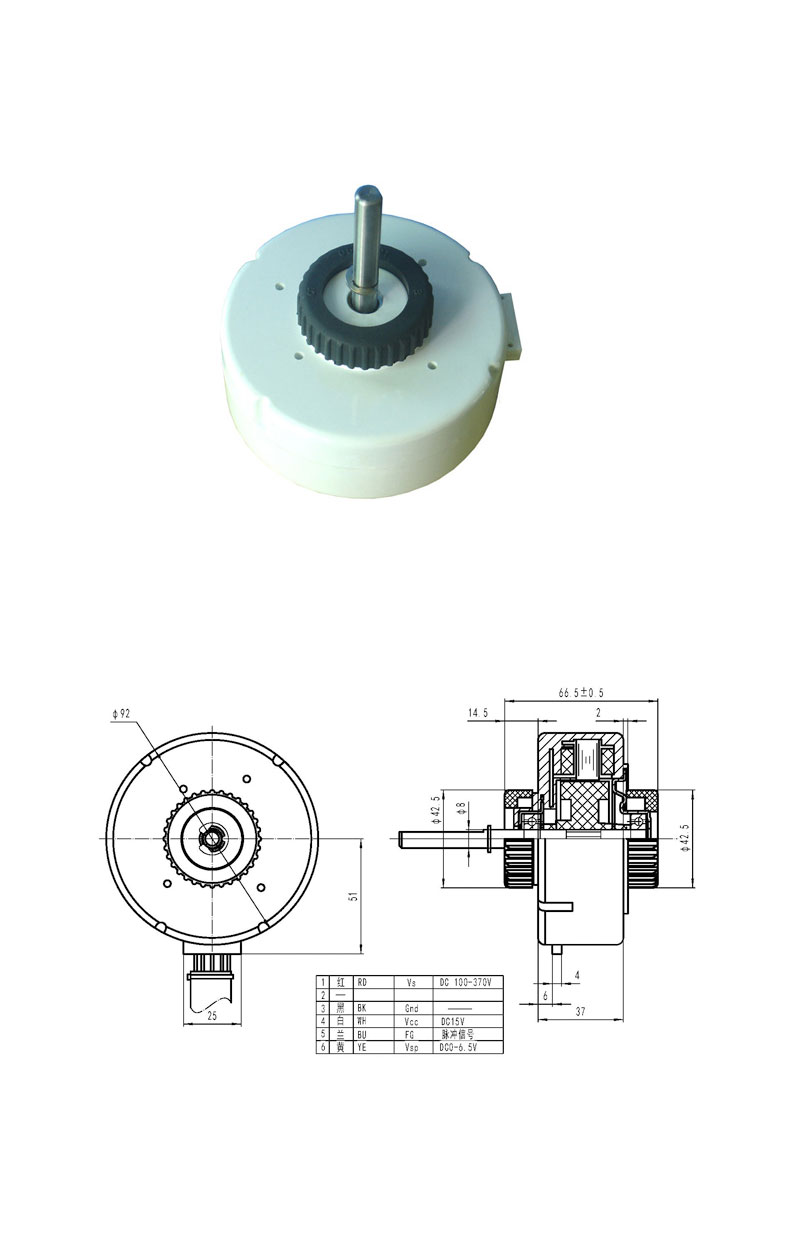

Mechanical dimensions

型号-新

2

Package show

4
