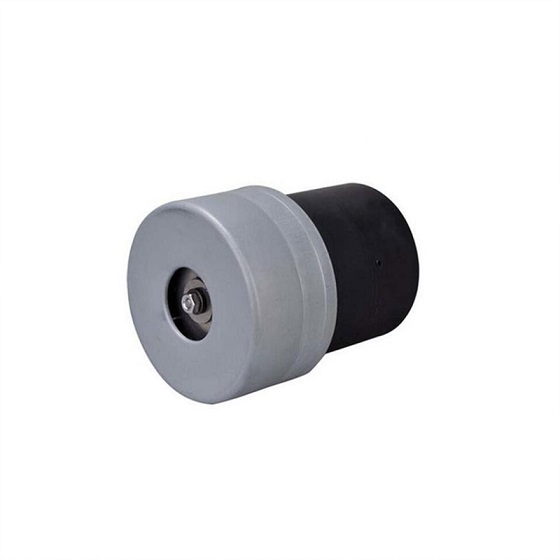

Vacuum Cleaner Motor

Availability:
Quantity:
Inquire Add to Basket

  • Vacuum Cleaner Motor

  • Ritscher

Product Description

Product characteristic

1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz

Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuseDC Motor for Grinder with UL approval

Typical Market:Products for industry and commerce uses motor
Application:Household appliances motor Industrial equipment motor Vacuum cleaner motor Medical products motor
Main Technical Parameters:Vol/Freq: 110-230V AC/50-60Hz    Rated Speed: 15000-19000RPM     Rated Power: 450-600 W    Insulation Class: B F H

Typical application
Medical equipment
Industrial deduster
Vacuum pump
Dust collector
Hand Drier


Typical model load performance





  Type         Voltage Range(V) Rated Voltage (V) Speed (RPM) Current (A) Speed (RPM) Current (A) P(W) Max Eff.(%)
BLW95719-01 210-230/AC

 220/AC 25000 0.8 19000 4 600 >8.8
BLW95615-01 90-130/AC

 110/AC 21000 1.2 15000 6.6 450 >6.5
BLW95715-01 210-240/AC

 230/AC 21000 0.6 15000 3.3 450 >6.5

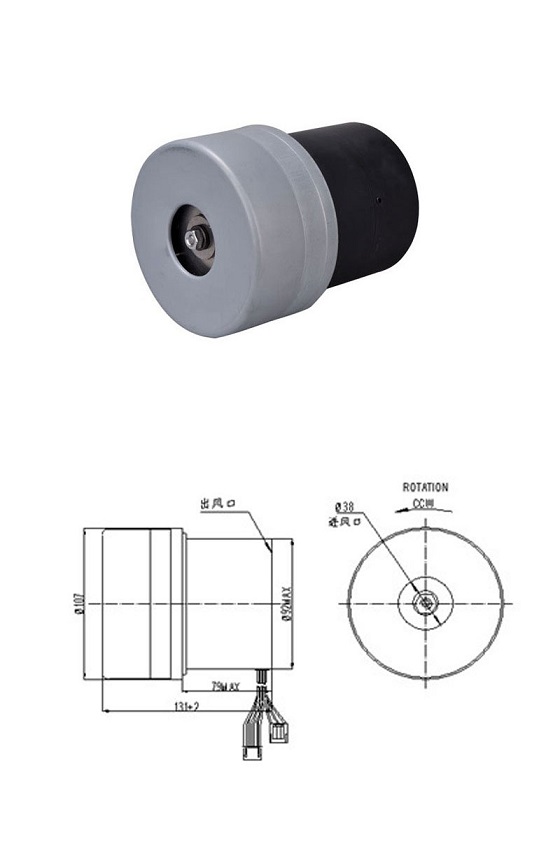

Mechanical dimensions

型号-新

2
