TL8420 cooker hood

Availability:
Quantity:
  • TL8420 cooker hood

  • Ritscher

Product Description

Product Description

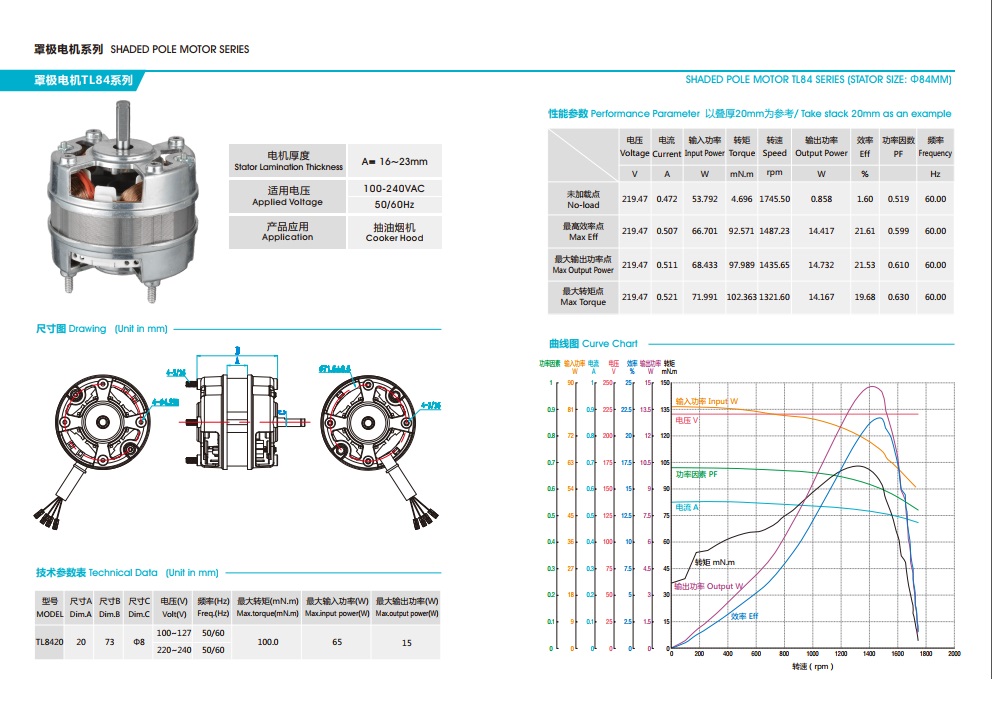

TL8420 cooker hood

Cross Flow Type Low-Nosie Transformer Cooling Fan
China factory Cross Flow Fan for Evaporation Air Conditioner

1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used:
Cross blower motors use on commonly Heater, Air cooling Fan etc
Volt(v)=110V-240v
Freq(HZ)=50/60HZ
Current(A)=0.18-0.43 based on different stator thickne
Input power on loading: From 13W to 36W based on different stator thickness
Torque: 60g. Cm to 120g. Cm based on different stator thickness

Shaft diameter(mm)=4-6mm
Shaft length(mm)=according to customer's requirement
Speed(r/min): 2600-3400 based on different stator thickness
Fan Diameter: 60mm
Fan length: Optional from 120mm to 360mm
