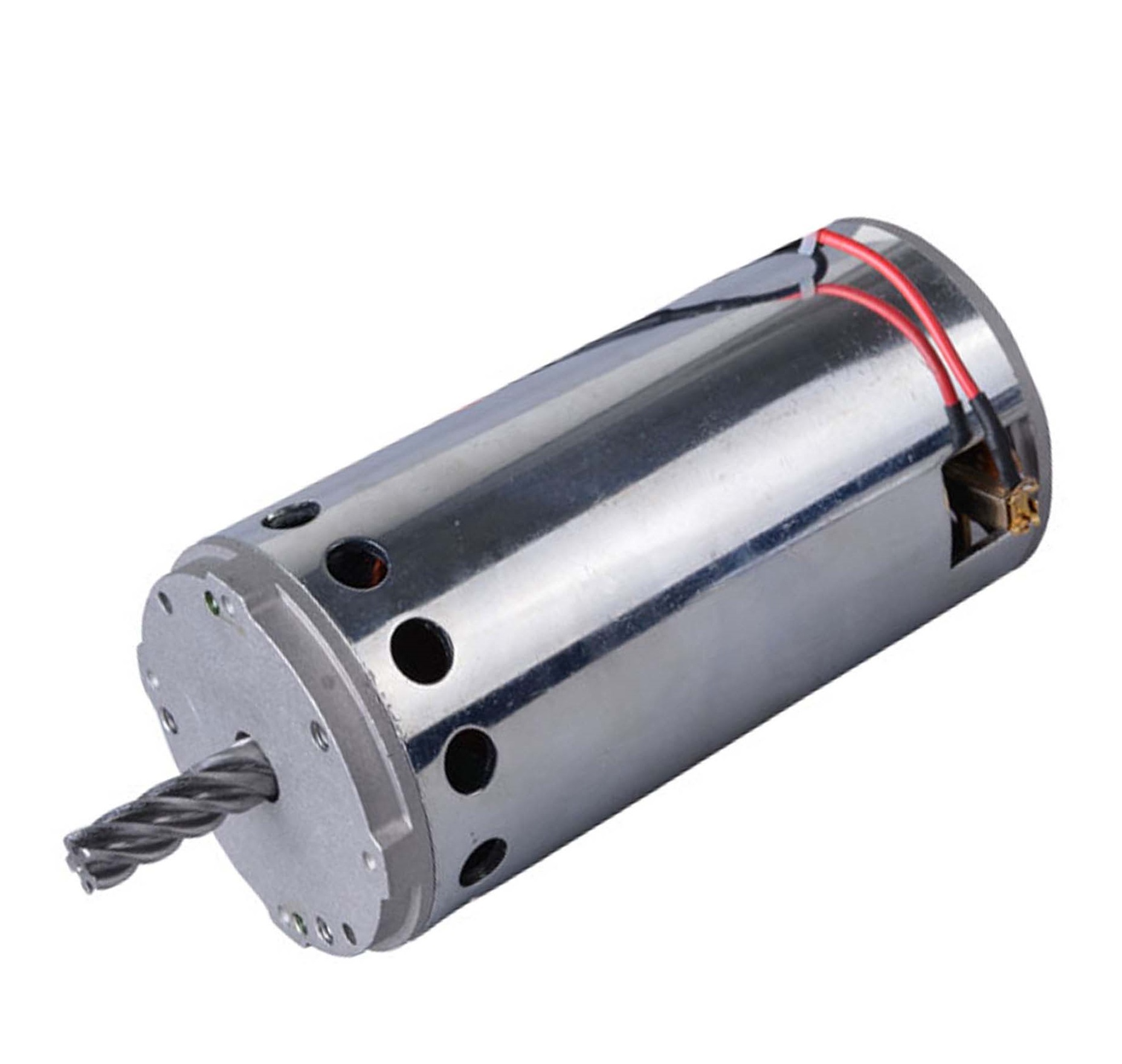

P53 DC Motor
Ritscher
Product Description
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
| Typical Market | ||||||||
| Products for industry and commerce uses motor | ||||||||
| Application | ||||||||
| Household appliances motor Office supplies motor Electric tools motor Industrial equipment motor Food process motor | ||||||||
| Main Technical Parameters | ||||||||
| Vol: 6-240V DC | ||||||||
| Rated Speed: 3000-12000RPM | ||||||||
| Rated Input Power: 10-600W | ||||||||
| Insulation Class: A B F H | ||||||||
| Typical application | ||||||||
| Fitness Apparatus Paper Shredder | ||||||||
| Food Processor Scooter | ||||||||
| Oil Pump Anchor Windlass | ||||||||

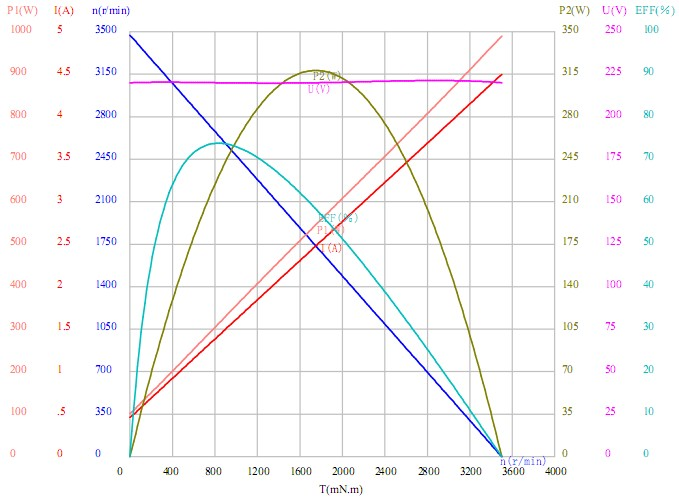

| Typical model load performance | ||||||||
| Type | length(mm) | Rated Voltage (V) | Current (A) | input Power(W) | Speed (RPM) | Torque | output Power(W) | Max Eff.(%) |
| P5330 | 105 | 120 | 1.02 | 168 | 2469 | 471.9 | 122 | 73 |
| P5380 | 175 | 230 | 0.73 | 153 | 2420 | 445.1 | 113 | 74.4 |
