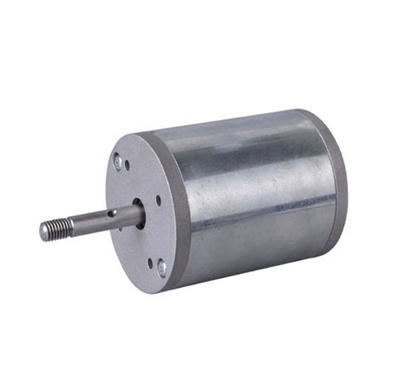

P44 DC Motor
Ritscher
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
| Typical Market |
| Products for industry and commerce uses motor |
| Application |
| Household appliances motor Office supplies motor Electric tools motor Industrial equipment motor Food process motor |
| Main Technical Parameters |
| Vol: 6-240V DC |
| Rated Speed: 1800-12000RPM |
| Rated Input Power: 10-500W |
| Insulation Class: A B F H |
| Typical application |
| Small-Sized Equipment Paper Shredder |
| Food Processor Printing Press |
| Water Pump Model |

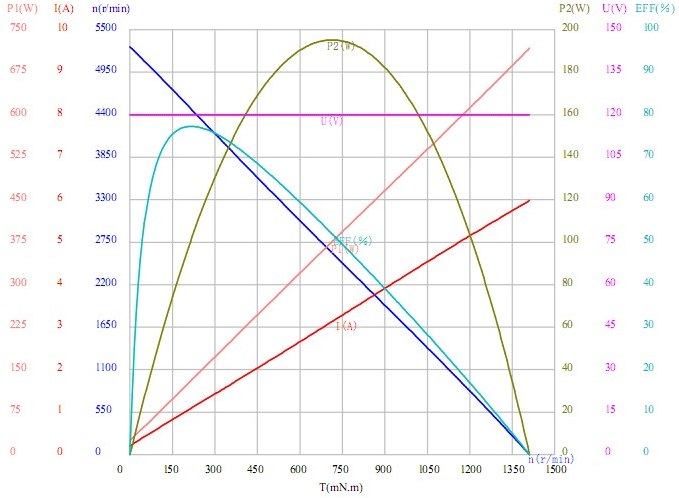

| Typical model load performance | ||||||||
| Type | length(mm) | Rated Voltage (V) | Current (A) | input Power(W) | Speed (RPM) | Torque | output Power(W) | Max Eff.(%) |
| P4430 | 86 | 220 | 1.23 | 268 | 7616 | 271.6 | 216 | 80.3 |
| P4460 | 116 | 120 | 1.53 | 180 | 4249 | 317 | 141 | 78.2 |
