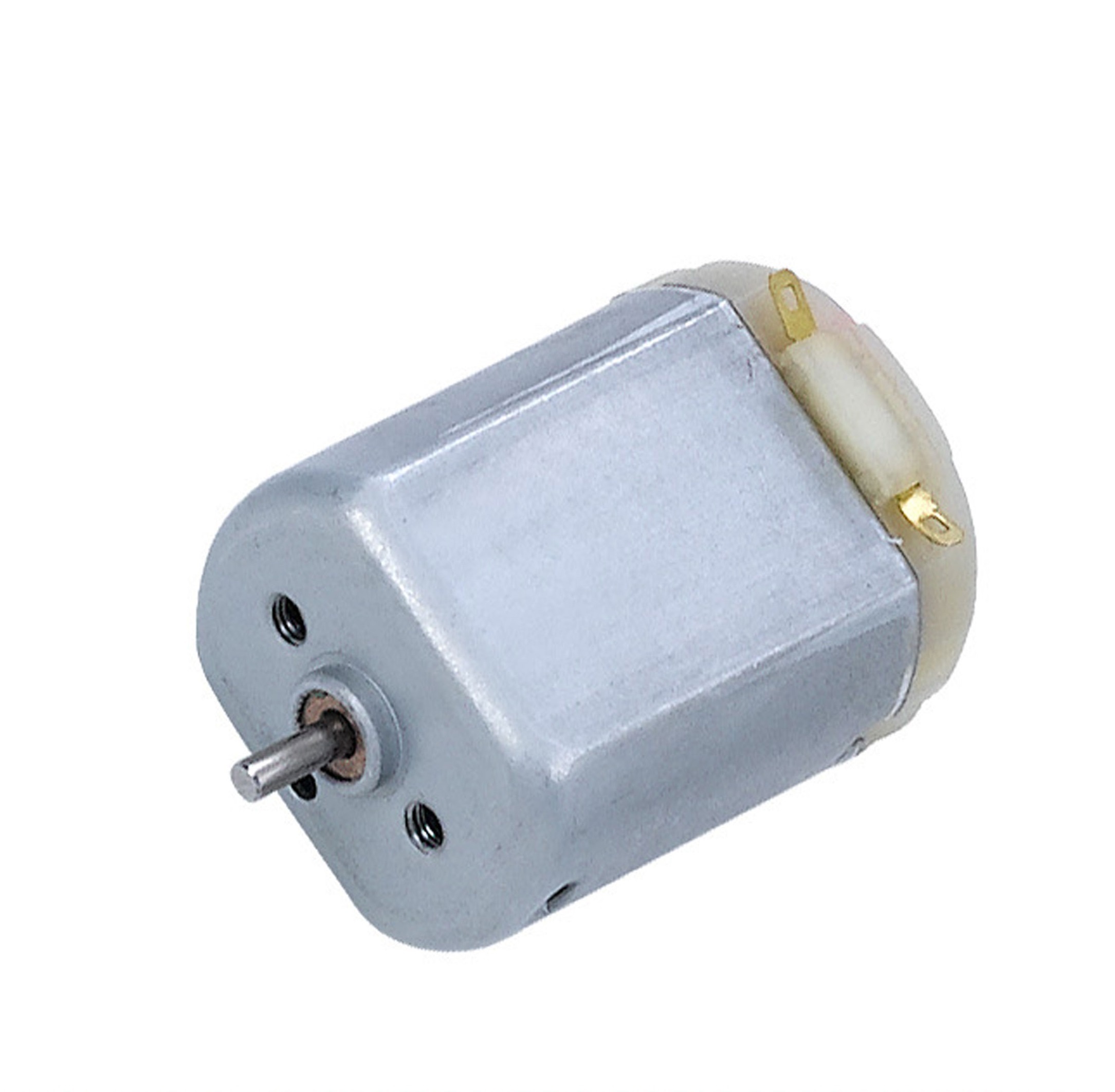

Mini Precision Instrument DC motor(N20)
Ritscher
This motor is usually used in small toy, precision instrument, sexy toy,digital camera, electronic toothbrush and beauty apparatus etc.

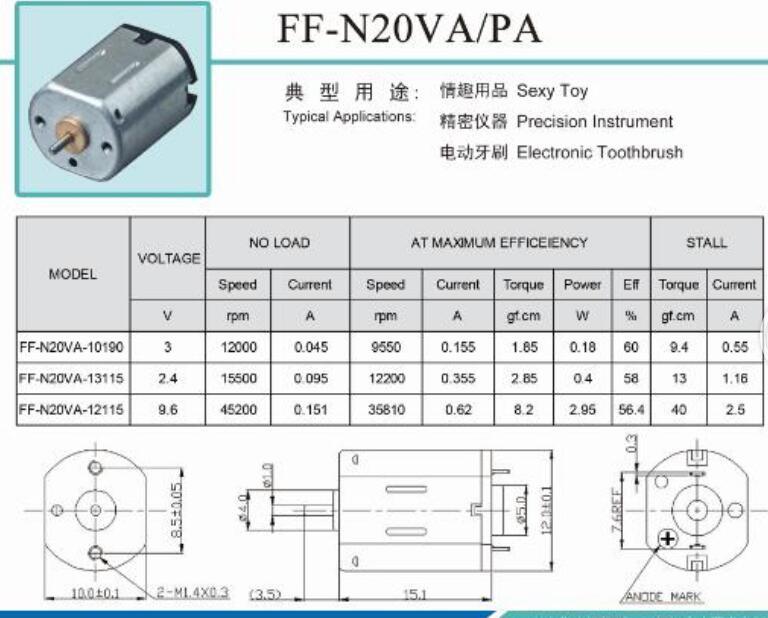

Products code | voltage | NO load | at maximum | stall | |||||||
operating range | speed(RPM) | Current(A) | speed(RPM) | Current(A) | torque(gf.com) | output(w) | Eff(%) | torque(gf.com) | Current(A) | ||
FF-N20VA-10190 | 3 | 12000 | 0.045 | 9550 | 0.155 | 1.85 | 0.18 | 60 | 9.4 | 0.55 | |
FF-N20VA-13115 | 2.4 | 15500 | 0.095 | 12200 | 0.355 | 2.85 | 0.4 | 58 | 13 | 1.16 | |
FF-N20VA-12115 | 9.6 | 45200 | 0.151 | 35810 | 0.62 | 8.2 | 2.95 | 56.4 | 40 | 2.5 |
