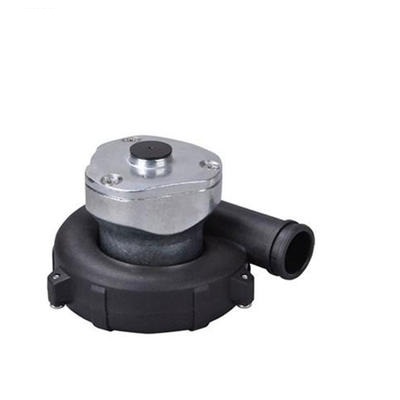

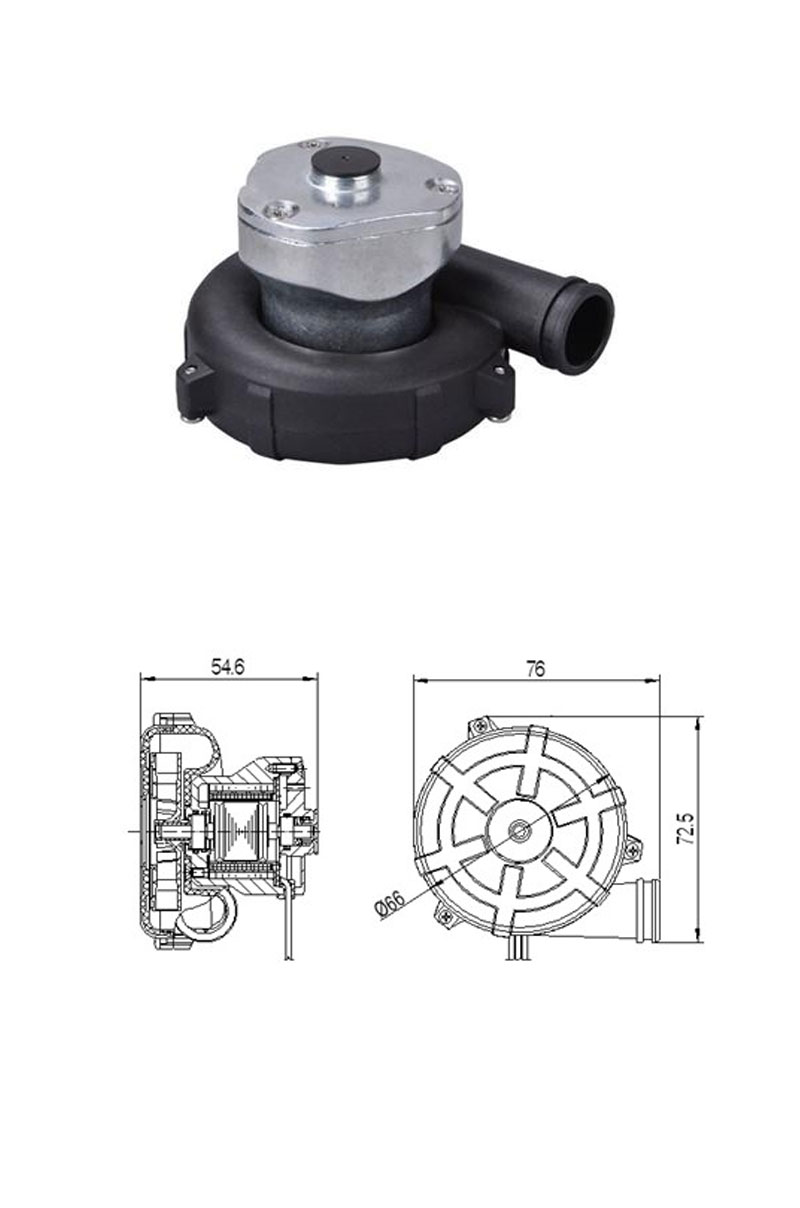

BLW50 Brushless DC Motor

Availability:
Quantity:
Inquire Add to Basket

  • BLW50 Brushless DC Motor

  • Ritscher

Product Description

Product Description

1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuse


Typical Market:Products for industry and commerce uses motor  Products for medical appliance motor


Application:Household appliances motor  Industrial equipment motor  Medical products motor


Main Technical Parameters:Vol:12-36V DC

                                      Rated Speed:26000-27000R

                                      Rated Power:43-45W

                                      Isulation Class:B F H




Typical application:Breathing Equipment/Air purifier/Radiator/Automatic bench drill.


  Type Voltage Range(V) Rated Voltage   (V) Speed （RPM) Current （A） Speed （RPM) Current （A） P（W） Max Eff.(%)
BLW50335-01 22-26/DC 24/DC 35000 0.5 26000 1.8 43 >3
BLW50235-01 10-14/DC 12/DC 35000 1 27000 3.6 45 >3
BLW50435-01 34-38/DC 36/DC 35000 0.3 27000 1.2 45 >3



型号-新

2

Package show

4
