BLW130 Air Ventilator Motor

Availability:
Quantity:
Inquire Add to Basket

  • BLW130 Air Ventilator Motor

  • Ritscher

Product Description

Product Description

1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuse


Typical Market







Products for industry and commerce uses motor




Application







Household appliances motor  Industrial equipment motor  Vacuum cleaner motor

Main Technical Parameters







Vol/Freq: 110-230V AC/50-60Hz





Rated Speed: 15000-18000RPM





Rated Power: 600-800 W






Insulation Class: B  F  H















Typical application






Medical equipment






Industrial deduster






Vacuum pump






Dust collector







Air ventilator







Typical model load performance





  Type Voltage Range(V) Rated Voltage (V) Speed （RPM) Current （A） Speed （RPM) Current （A） P（W） Max Eff.(%)
BLW130718-01 210-230/AC 220/AC 25000 0.9 18000 6.2 800 >15.8
BLW130715-01 210-240/AC 230/AC 21000 0.7 15000 4.6 600 >12.5
BLW130618-01 90-120/AC 110/AC 25000 1.3 18000 12.3 800 >15.8

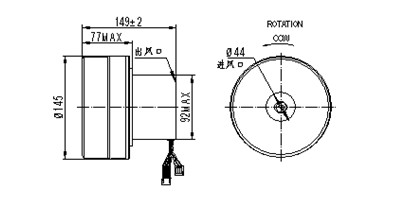

Mechanical dimensions

型号-新

2

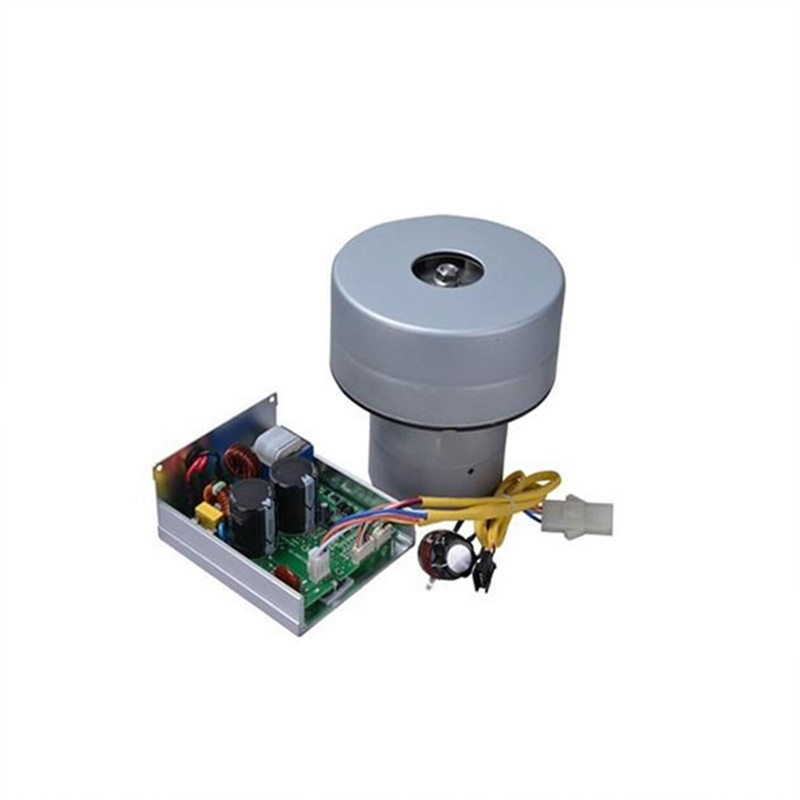

Package show

4
