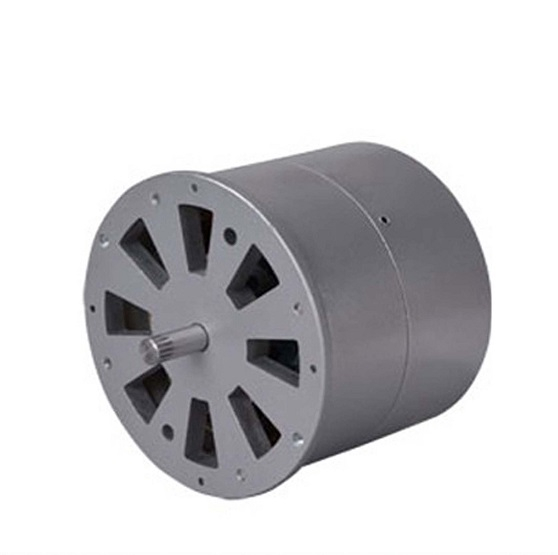

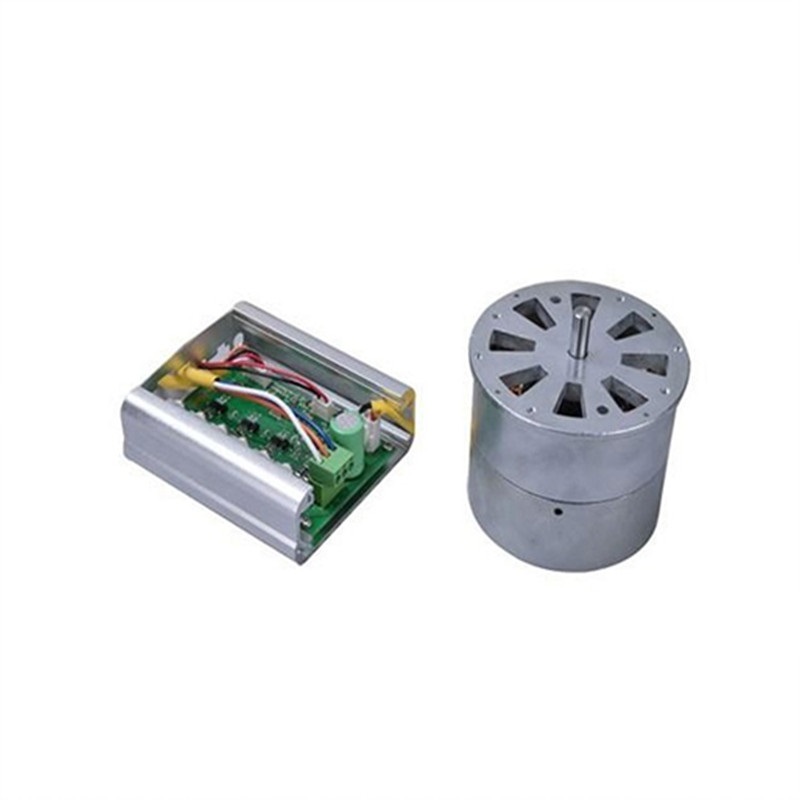

BL92 Brushless DC Motor
Ritscher
Industry and Commerce Uses BLDC Centrifuge Motor
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuse
| Typical Market | ||||||||
| Products for industry and commerce uses motor Products for medical appliance motor | ||||||||
| Application | ||||||||
| Household appliances motor Industrial equipment motor Fan motor Medical products motor | ||||||||
| Main Technical Parameters | ||||||||
| Vol/Freq: 12-24V DC/220V AC/50-60Hz | ||||||||
| Rated Speed: 1300-3600RPM | ||||||||
| Rated Power: 90-110W | ||||||||
| Insulation Class: B F H | ||||||||
| Typical application | ||||||||
| Centrifuge | ||||||||
| Massager | ||||||||
| Skate-board | ||||||||
| Compression pump | ||||||||
| Smoke exhaust | ||||||||
| Typical model load performance | ||||||||
| Type | Voltage Range(V) | Rated Voltage (V) | Speed （RPM) | Current （A） | Speed （RPM) | Current （A） | P（W） | Max Eff.(%) |
| BL92201-01 | 10-15/DC | 12/DC | 1300 | 0.8 | 1300 | 7.5 | 90 | 79 |
| BL92301-01 | 19-28/DC | 24/DC | 1700 | 0.8 | 1700 | 4 | 96 | 82 |
| BL92703-01 | 210-250/AC | 220/AC | 4700 | 0.1 | 3600 | 1 | 110 | 83 |
heater motor exhaust fan motor Electric Motor with UL/Ce Approval
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuse
Typical Market:Products for industry and commerce uses motor
Application:Household appliances motor, Industrial equipment motor, Fan motor
Main Technical Parameters:Vol:24-48V
Rated Speed:4800R
Rated Power:90W
Insulation Class: B F H
Typical application:Water heater Radiator fan Compressing Pump
