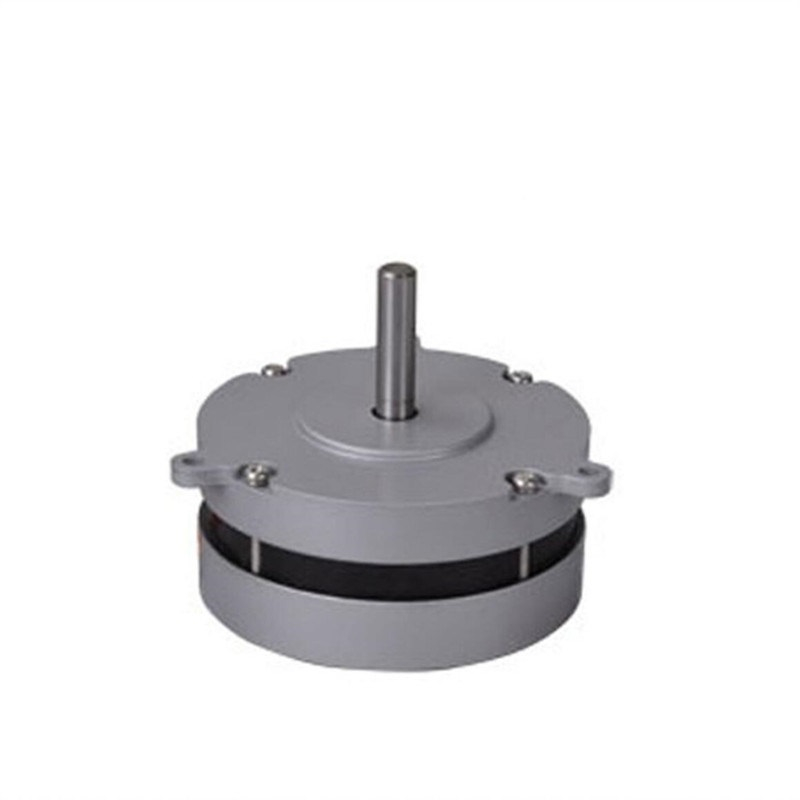

BL80-02 Brushless DC Motor For Exhaust Fan

Availability:
Quantity:
Inquire Add to Basket

  • BL80-02 Brushless DC Motor For Exhaust Fan

  • Ritscher

Product Description

  • Product Description

  • heater motor  exhaust fan motor Electric Motor with UL/Ce Approval

    1. Stator size is optional
    2. Safe, reliable, low noise, good starting, long life
    3. Strong power
    Rated voltage 110~120V/220~240V-50/60Hz


  • Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
    Thermal protector with one shot fuse or multi shot fuse


  • Typical Market:Products for industry and commerce uses motor

  • Application:Household appliances motor, Industrial equipment motor, Fan motor

  • Main Technical Parameters:Vol:24-48V

  • Rated Speed:4800R

  • Rated Power:90W

  • Insulation Class: B  F  H

  • Typical application:Water heater   Radiator fan   Compressing Pump


  •   Type Voltage Range(V) Rated Voltage   (V) Speed （RPM) Current （A） Speed （RPM) Current （A） P（W） Max Eff.(%)
    BL80304-01 22-26/DC 24/DC 5500 1.2 4800 4.5 90 83
    BL80404-02 34-38/DC 36/DC 5500 0.9 4800 3 90 83
    BL80504-01 44-52/DC 48/DC 5500 0.6 4800 2.3 90 82


  • 型号-新

2

Package show

4
