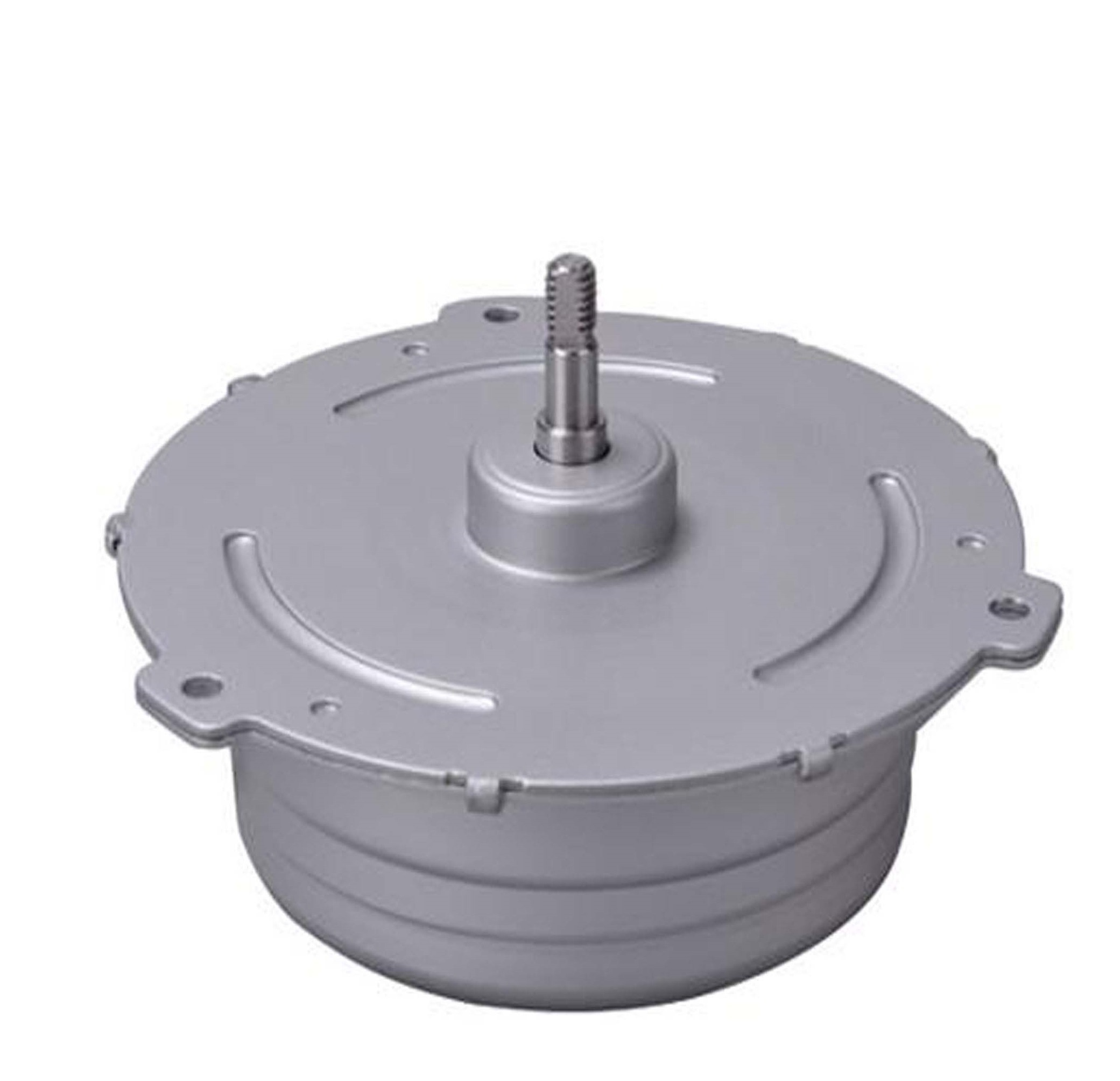

BL80-01 Fan Motor

Availability:
Quantity:
Inquire Add to Basket

  • GBL80-01 Fan Motor

  • Ritscher

Product Description

  • Product Description

  • heater motor  exhaust fan motor Electric Motor with UL/Ce Approval

    1. Stator size is optional
    2. Safe, reliable, low noise, good starting, long life
    3. Strong power
    Rated voltage 110~120V/220~240V-50/60Hz
    Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
    Thermal protector with one shot fuse or multi shot fuse




  • Typical Market







    Products for industry and commerce uses motor




    Application







    Household appliances motor  Industrial equipment motor  Fan motor


    Main Technical Parameters







    Vol: 12-36V DC






    Rated Speed: 1900-4500RPM





    Rated Power: 17-40W






    Insulation Class: B  F  H






    Typical application






    Heat exchanger






    Air exchange fan






    Fan

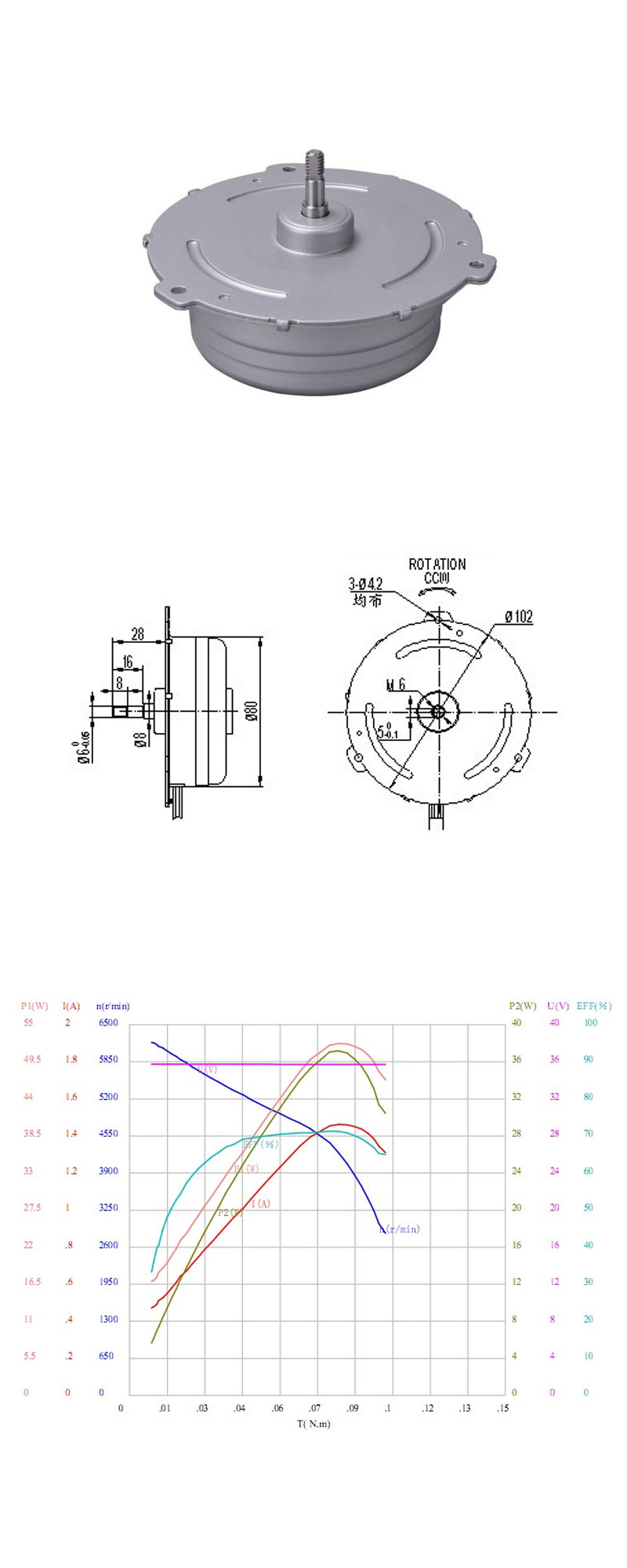

    Typical model load performance





      Type Voltage Range(V) Rated Voltage (V) Speed （RPM) Current （A） Speed （RPM) Current （A） P（W） Max Eff.(%)
    BL80404-01 34-38/DC 36/DC 6000 0.3 4500 1.1 40 71
    BL80303-01 22-26/DC 24/DC 4700 0.3 3000 0.8 20 63
    BL80301-01 22-26/DC 24/DC 3300 0.1 1900 0.7 17 55


  • 型号-新

2

Package show

4
