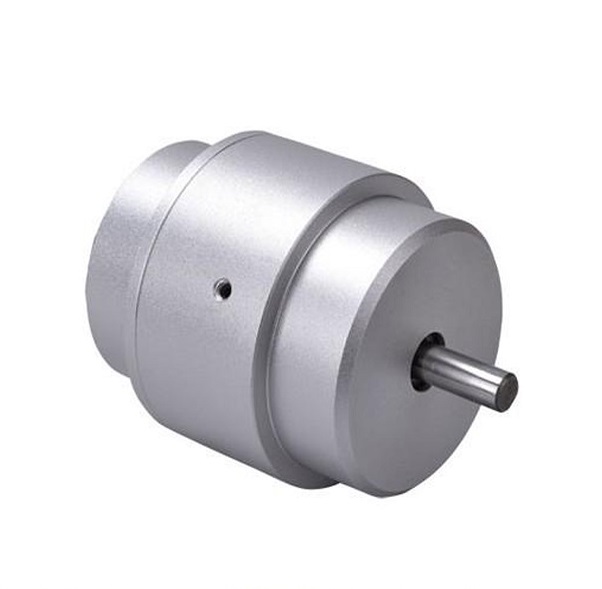

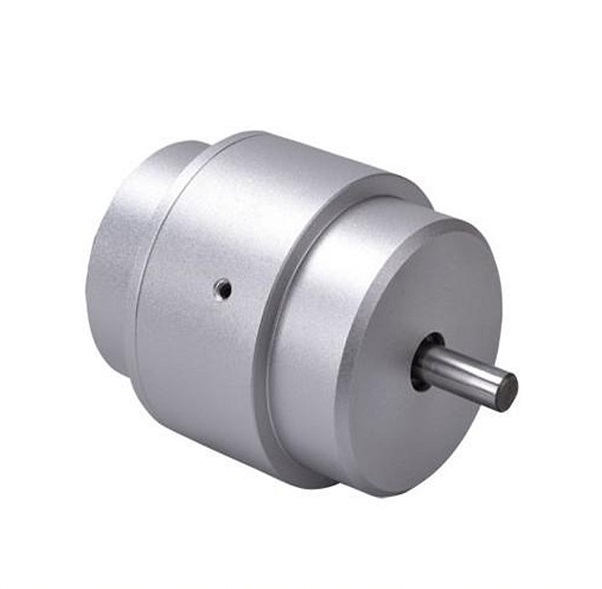

BL66 BLDC Motor

Availability:
Quantity:
Inquire Add to Basket

  • BL66 BLDC Motor

  • Ritscher

Product Description


  • heater motor  exhaust fan motor Electric Motor with UL/Ce Approval


  • 1. Stator size is optional
    2. Safe, reliable, low noise, good starting, long life
    3. Strong power
    Rated voltage 110~120V/220~240V-50/60Hz


  • Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
    Thermal protector with one shot fuse or multi shot fuse


  • Typical Market:Products for industry and commerce uses motor  Products for medical appliance motor

  • Application:Household appliances motor  Office supplies motor  Medical products motor

  • Main Technical:Vol:12-36V DC

  • Rated Speed:1860R

  • Rated Power:20-30W

  • Insulation Class: B  F  H

  • Typical application:Blender/Air pump/Radiator

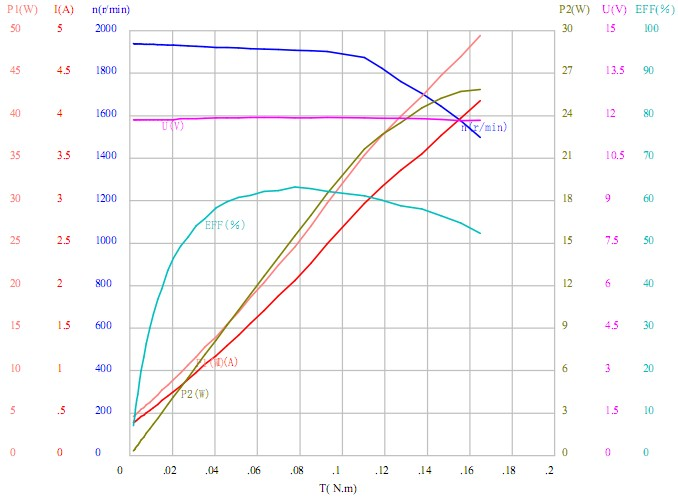

  •   Type Voltage Range(V) Rated Voltage (V) Speed （RPM) Current （A） Speed （RPM) Current （A） P（W） Max Eff.(%)
    BL66201-01 10-14/DC 12/DC 1860 0.5 1860 2.8 21.8 65
    BL66301-01 22-26/DC 24/DC 1860 0.25 1860 1.4 21.8 65
    BL66401-01 34-38/DC 36/DC 1860 0.12 1860 0.7 21.8 65
  • 型号-新

2

Package show

4
