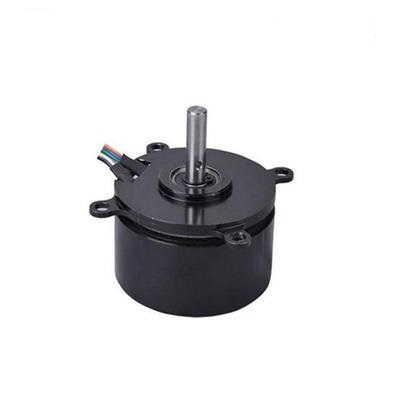

BL65 Transmission equipment Motor

Availability:
Quantity:
Inquire Add to Basket

  • Stable Speed Skateboard China DC Brushless Motor

  • Ritscher

Product Description


  • Product Description

  • heater motor  exhaust fan motor Electric Motor with UL/Ce Approval

    1. Stator size is optional
    2. Safe, reliable, low noise, good starting, long life
    3. Strong power
    Rated voltage 110~120V/220~240V-50/60Hz
    Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
    Thermal protector with one shot fuse or multi shot fuse


  • Typical Market







    Products for industry and commerce uses motor  Products for medical appliance motor

    Application







    Household appliances motor  Industrial equipment motor  Medical products motor

    Main Technical Parameters







    Vol./Freq: 48-155V DC/220V AC/50Hz





    Rated Speed: 3000-4500RPM





    Rated Power: 20-50 W






    Insulation Class: B  F  H






    Typical application






    Bladeless fan







    Air purifier







    Transmission equipment






    Ventilator







    Sanding machine






    散热装置















    Typical model load performance





      Type Voltage Range(V) Rated Voltage (V) Speed （RPM) Current （A） Speed （RPM) Current （A） P（W） Max Eff.(%)
    BL65603-01 100-200/DC 155/DC 4100 0.1 3000 0.3 45 80
    BL65503-01 44-52/DC 48/DC 3800 0.3 3000 1 34 81
    BL65703-01 190-250/AC 220/AC 3800 0.1 3000 0.3 46 81

  • 型号-新

2

Package show

4
