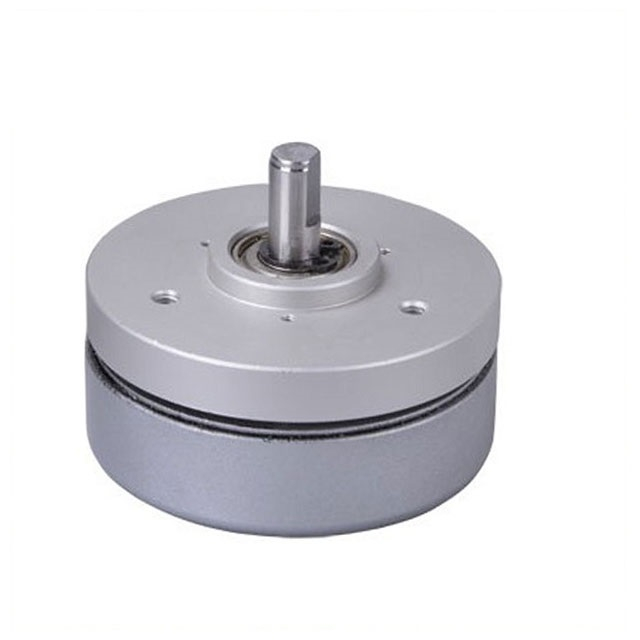

BL62 Radiator fan Motor

Availability:
Quantity:
Inquire Add to Basket

  • BL62 Radiator fan Motor

  • Ritscher

Product Description

  • Product Description

  • heater motor  exhaust fan motor Electric Motor with UL/Ce Approval

    1. Stator size is optional
    2. Safe, reliable, low noise, good starting, long life
    3. Strong power
    Rated voltage 110~120V/220~240V-50/60Hz
    Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
    Thermal protector with one shot fuse or multi shot fuse


  • Typical Market







    Products for industry and commerce uses motor  Products for medical appliance motor

    Application







    Household appliances motor  Industrial equipment motor  Medical products motor

    Main Technical Parameters







    Vol: 12-48V DC






    Rated Speed: 1800RPM






    Rated Power: 20-30 W






    Insulation Class: B  F  H






    Typical application






    Oxygen generator






    Air drier







    Air pump







    Compression pump






    Radiator fan

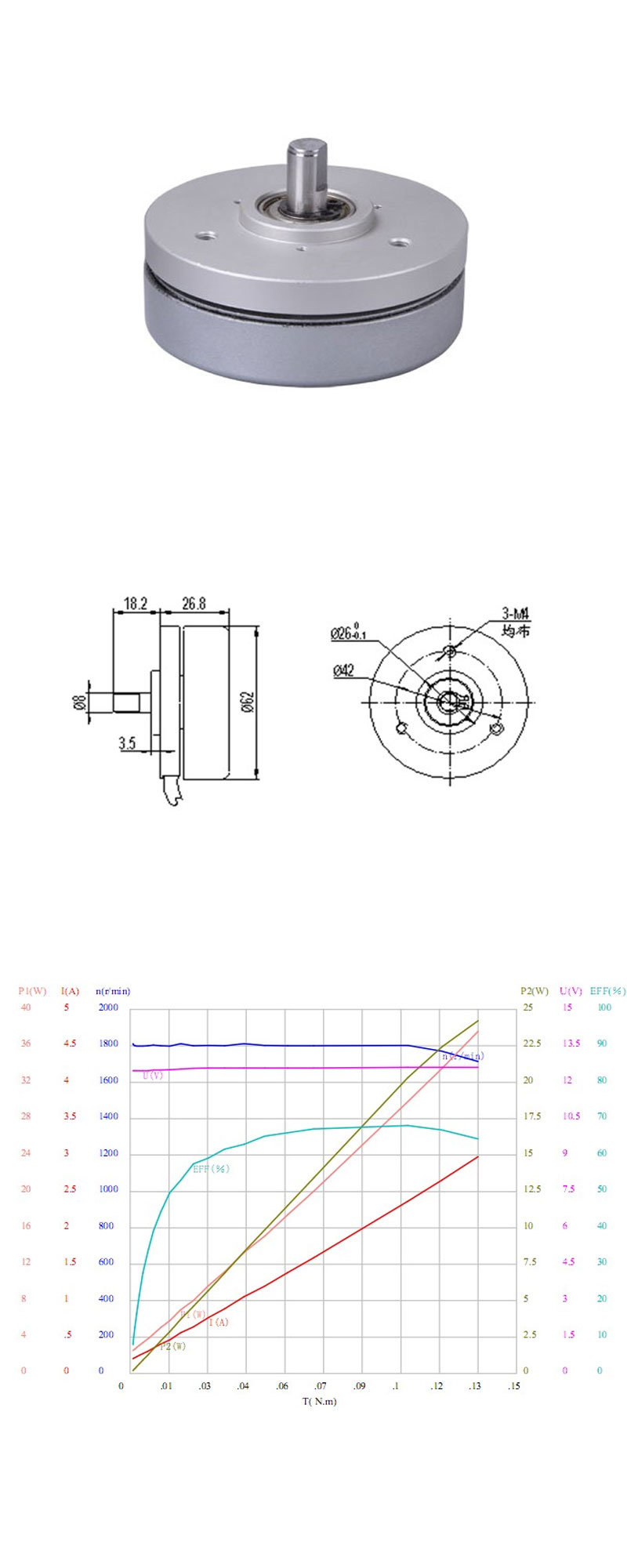

    Typical model load performance


      Type Voltage Range(V) Rated Voltage (V) Speed （RPM) Current （A） Speed （RPM) Current （A） P（W） Max Eff.(%)
    BL62201-01 10-14/DC 12/DC 1850 0.4 1800 2.25 27 67
    BL62301-01 22-26/DC 24/DC 1850 0.2 1800 1 25 70
    BL62501-01 44-52/DC 48/DC 1850 0.1 1800 0.5 24 70
