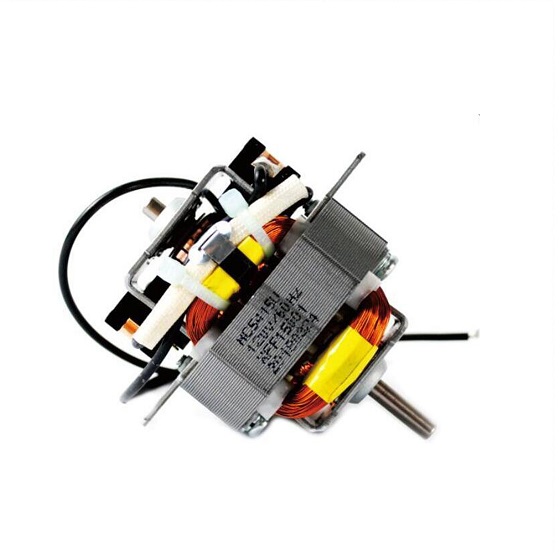

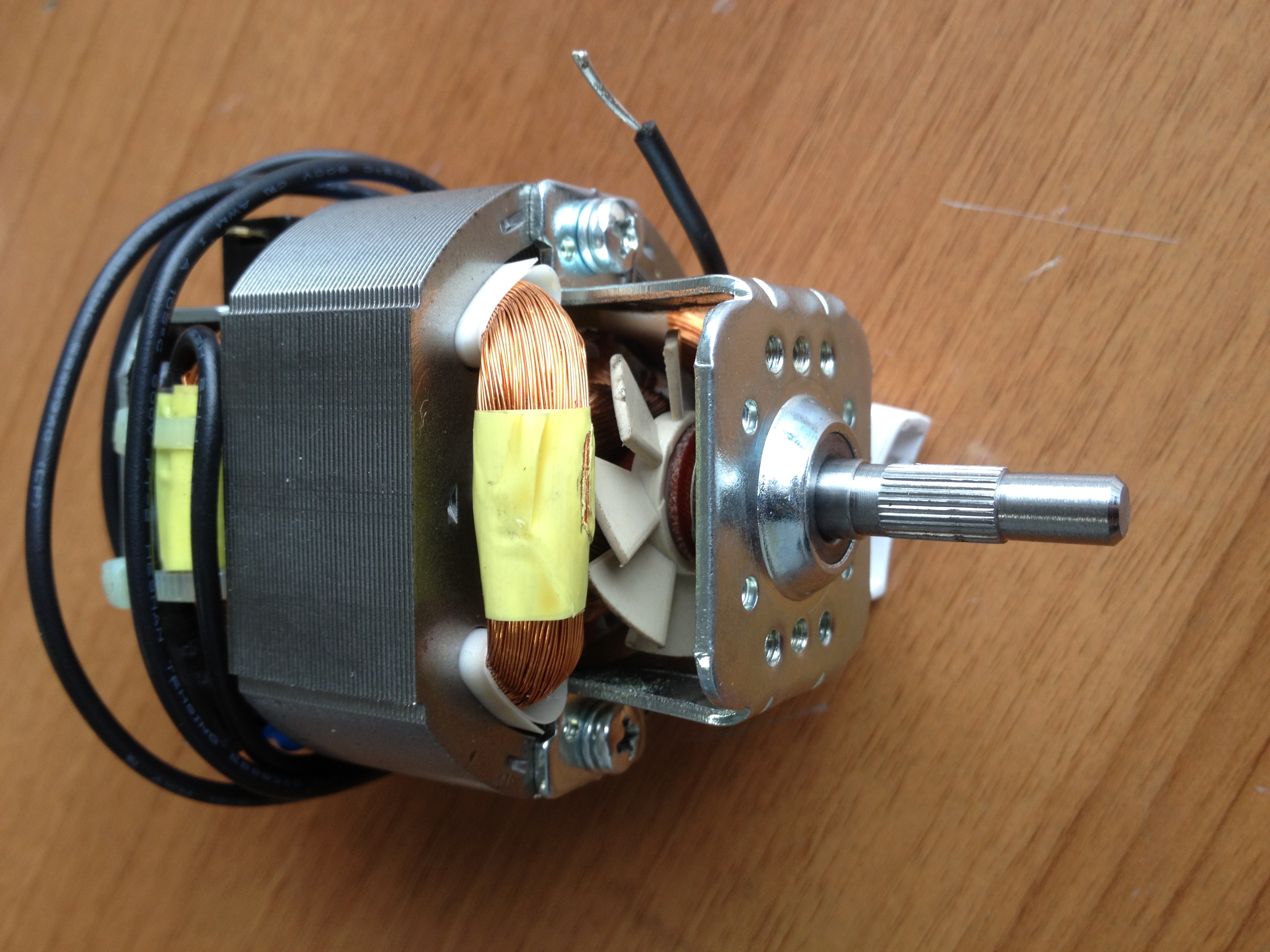

5420 AC Universal Blender Motor

Availability:
Quantity:
Inquire Add to Basket

  • 5420 AC Universal Blender Motor

  • Ritscher

Product Description

5420 Ac Universal Motor:
1. Rated: 100-240V, 50/60Hz
2. Rated speed: 6000-22000rpm
3. Input Power: 100-700W
4. Insulation class: A B F H

Rated voltage 100~240V-50/60Hz

Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers


Packaging & Delivery


Packaging Details:		 20 PCS in 450*270*190 MM CTN.
Delivery Detail: 2 weeks after the PO date.


Specifications
1.220 volt universal blower motor 160W 11000 rpm
2. Motor application:air pump, juicer motor
3. Motor customed

220 volt universal blower motor 160W 11000 rpm



Motor Description:


1. Shaft diameter is 6.35 MM. which could be 5.0 MM, 4.5 MM or other dimensions.
2. Insulation class: B.
3. Life time: 100 hours. Which could also be extended to be 1000+ hours according to the application's requirement.


Typical Application
 universal ac motor can be used: Air pump, Air compresser, Juicer, Vacum cleaner and other hand-hold tools.

Performance of this universal blower motor

Voltage		 Current Pin Torque Speed  Pout   Eff P.F Frequency

Torque_max

 220 1.5 309.5 167.6 679 11.91 3.8 0.938 50.01 22.14

Eff_Max

 220.6 0.77 166.7 51.4 11757 63.22 37.9 0.981 50.01 10.22

Speed_Max

 220.8 0.532 116.6 0.5 16368 0.927 0.8 0.994 50.01 0
Pout_Max 220.4 0.942 201.8 77.8 8963 72.97 36.2 0.972 50 13.6

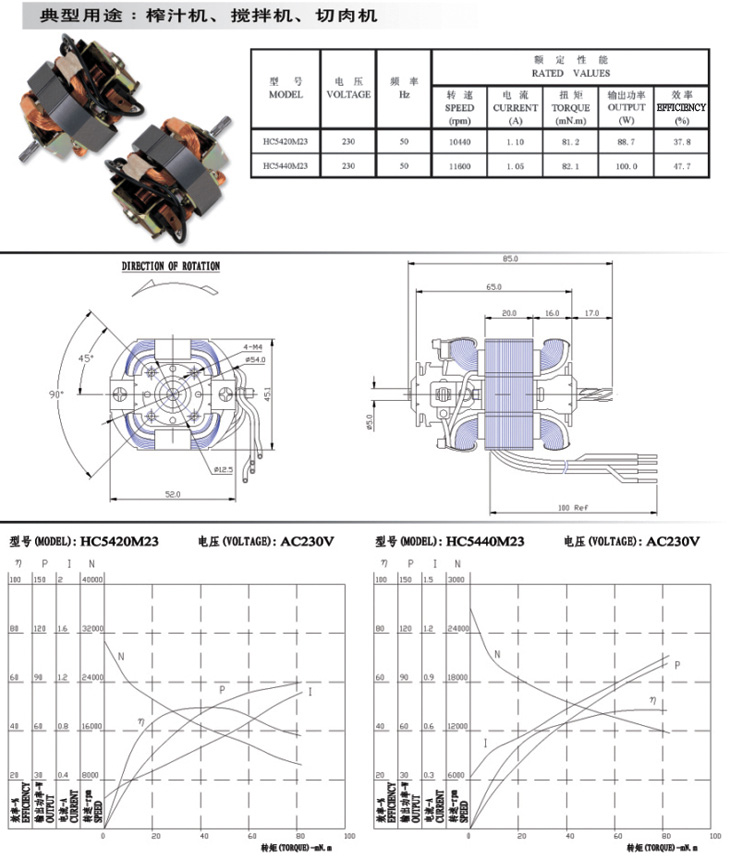

Mechanical dimensions

型号-新

2

Package show

4
