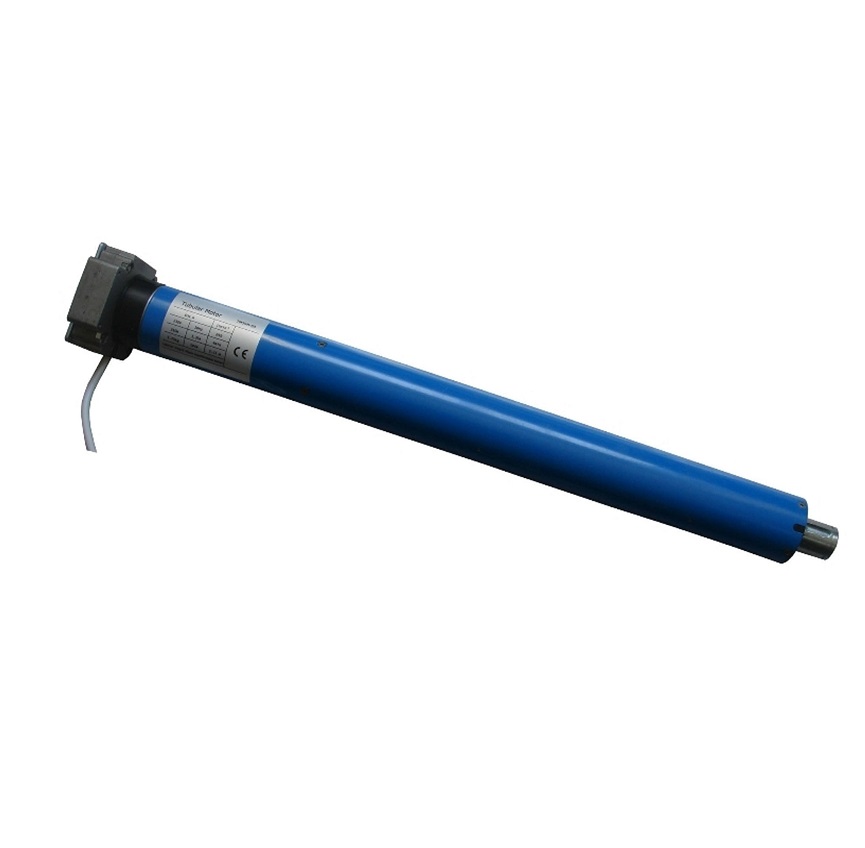

45mm Tubular Motor for Roller Shutters

Availability:
Quantity:
Inquire Add to Basket

  • 45mm Tubular Motor for Roller Shutters

Product Description

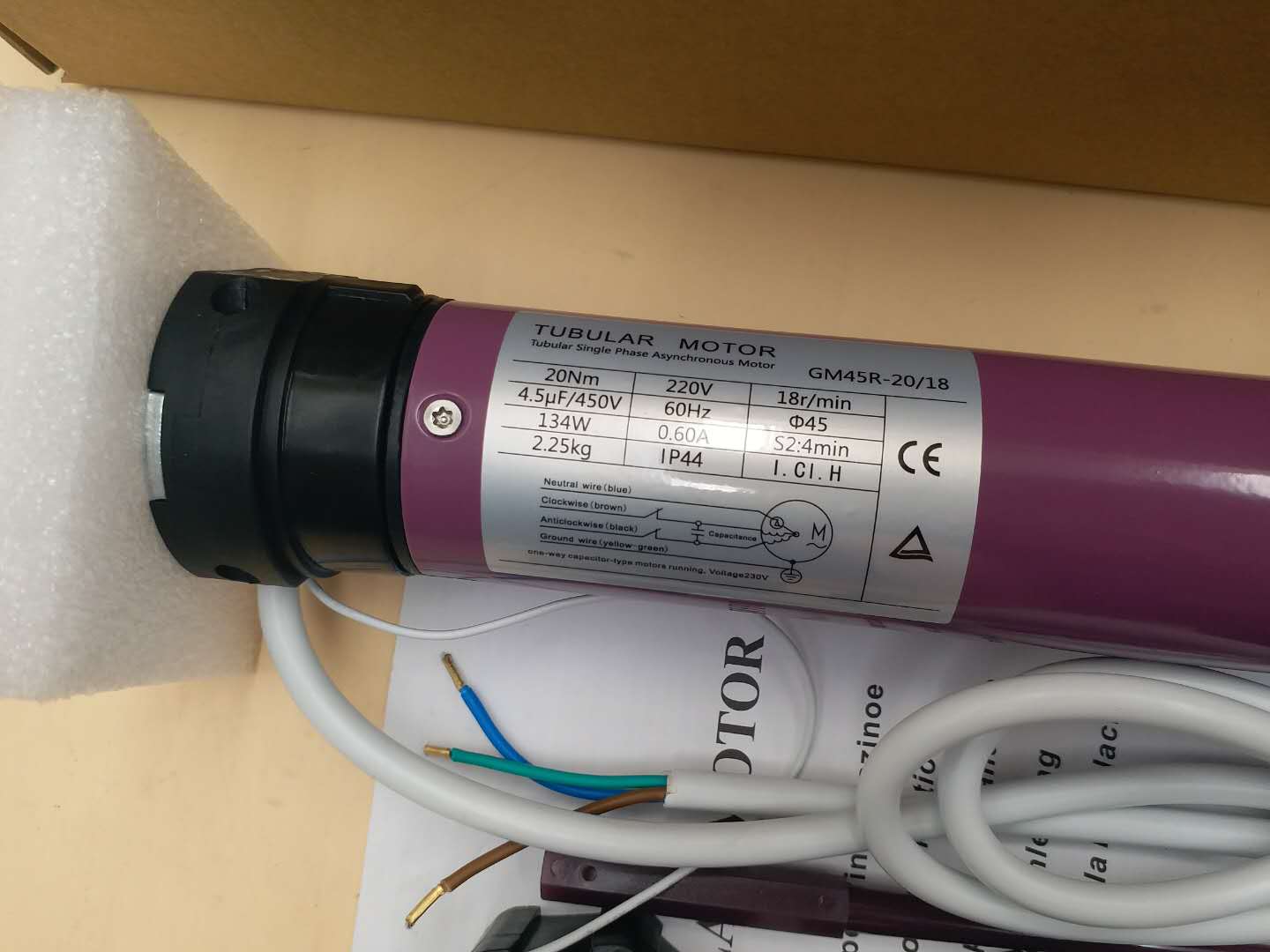

45mm Tubular Motor for Roller Shutter With Movable  Wire



Model 45R-20/18







Speed 18rpm/min







Torque 20Nm







motor tube diameter 45mm







Working time 4min







Limit switch capacity(Trns) 23







Protection Rating(IP) 44







Accessories Crown(GH14) Adaptor(GL19) Ldler(GW04)
60 accessory




Voltage-Frequency(V-Hz) 220-60
Rated Current(A) 0.6A
Rated Power(W) 134
Cable Length(M) 1.0-2.5

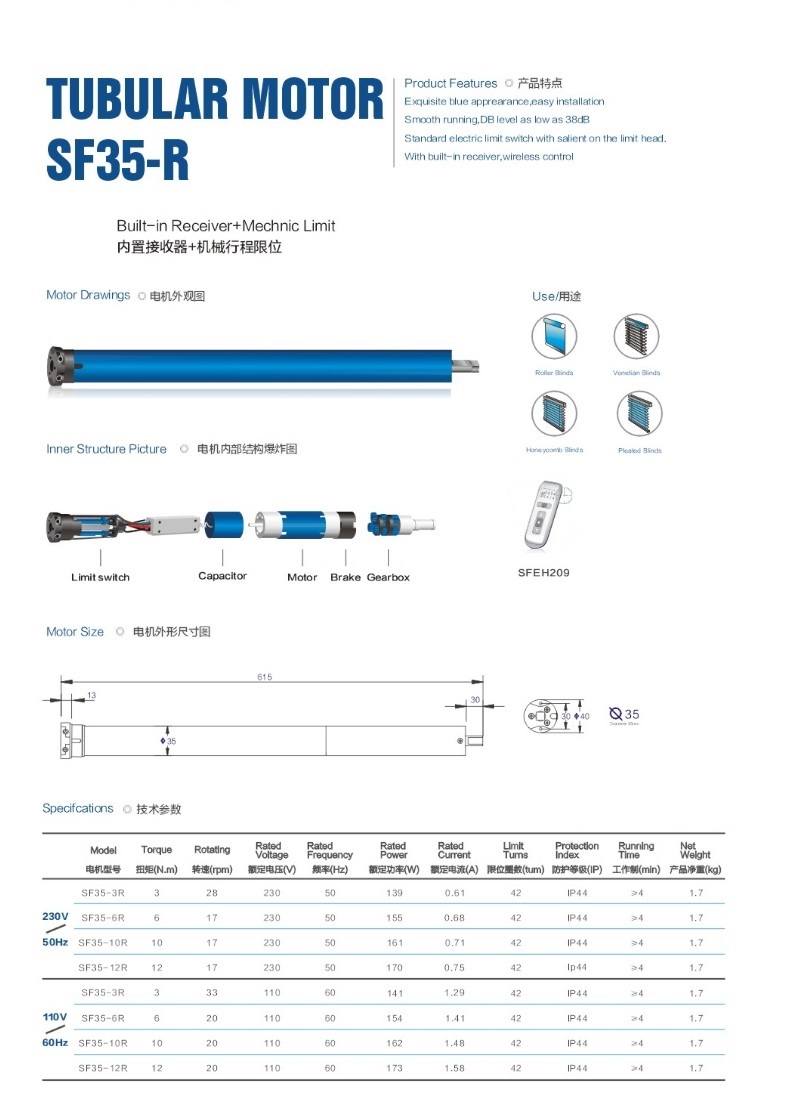

SF35-R

35E motor is electronic limit switch and built-in receiver. Also thanks to its small head and its little noise, issuitable for installation with motorized roller blinds, motorized wooden venetian blinds, motorized Roman blinds, motorized pleated blinds.


 Model Torque(N.m) Rotating(RPM) Rated Voltage(v) Rated Frequency(Hz) Rated power(w) Rated Current(A) Limit Tums(tum) Protection Index(IP) Running Time(min) Net Weight(kg)
230V/50Hz SF35-3R 3 28 230 50 139 0.61 42 IP44 >4 1.7
SF35-6R 6 17 230 50 155 0.68 42 IP44 >4 1.7
SF35-10R 10 17 230 50 161 0.71 42 IP44 >4 1.7
SF35-12R 12 17 230 50 170 0.75 42 IP44 >4 1.7
110V/60Hz SF35-3R 3 33 110 60 141 1.29 42 IP44 >4 1.7
SF35-6R 6 20 110 60 154 1.41 42 IP44 >4 1.7
SF35-10R 10 20 110 60 162 1.48 42 IP44 >4 1.7
SF35-12R 12 20 110 60 173 1.58 42 IP44 >4 1.7













Model Torque(N.m) Rotating(RPM) Rated Voltage(v) Rated Frequency(Hz) Rated power(w) Rated Current(A) Limit Tums(tum) Protection Index(IP) Running Time(min) Net Weight(kg)
230V/50Hz SF45-10R 10 15 230 50 162 0.71 22 IP44 >4 2.3
SF45-20R 20 15 230 50 178 0.78 22 IP44 >4 2.5
SF45-30R 30 15 230 50 253 1.03 22 IP44 >4 3
SF45-40R 40 12 230 50 275 1.2 22 IP44 >4 3.2
SF45-50R 50 12 230 50 282 1.23 22 IP44 >4 3.4
230V/50Hz SF45-10R 10 18 110 60 166 1.51 22 IP44 >4 2.3
SF45-20R 20 18 110 60 179 1.62 22 IP44 >4 2.5
SF45-30R 30 18 110 60 244 2.23 22 IP44 >4 3
SF45-40R 40 14 110 60 280 2.55 22 IP44 >4 3.2
SF45-50R 50 14 110 60 296 2.45 22 IP44 >4 3.4



型号-1 - 副本factory show-new - 副本packacge new - 副本
