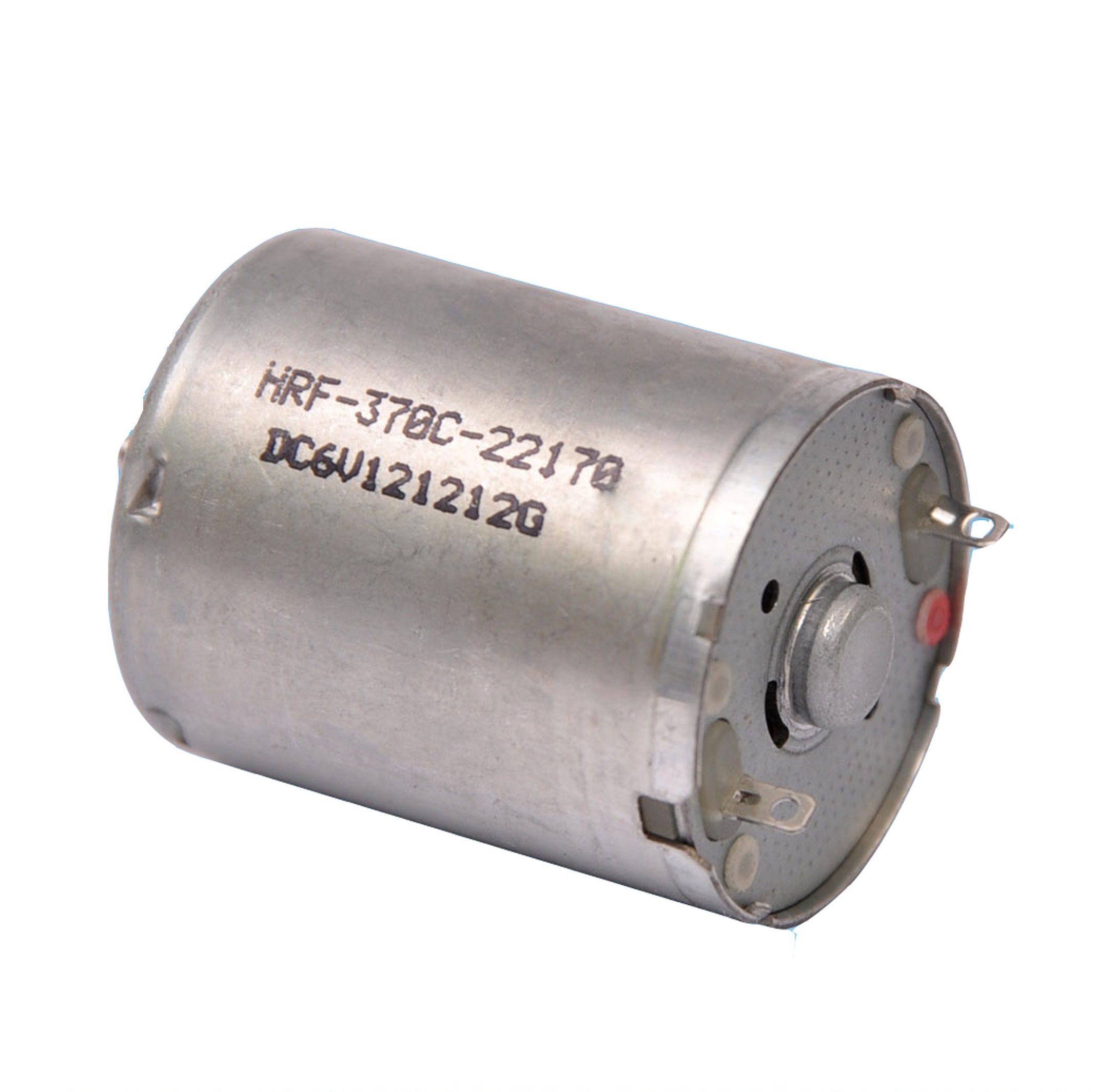

370 Electric Motor
Ritscher
| Testing Report For Samples | |||||
| Model | RF-370CA | Date | 2018/10/26 | ||
| Rated Volt | DC 5.0 V | Rotation | Insulation Resistance | ||
| Free Load | On Load 31 g.cm | ||||
| Current | Speed | Current | Speed | ||
| mA | rpm | mA | rpm | CW/CCW | MΩ(100V≥1MΩ) |
| 120 | 5560±10% | 650 | 4200±10% | CW | 10MΩ/500VDC |
| Noise(dB) | OK | ||||
| Vibration | OK | ||||
| Length of Output Shaft | 10.5±0.4 | ||||
| Axial Play | 0.05-05mm | ||||
| Motor Wave | OK | ||||
| Ambient Temperature | 25±10℃ | ||||
| Relative Humidity | 65%±25% | ||||
Specifications for motor can be custome made by customer's demands.
